Dissolved Air Flotation (DAF)

Overview

K-Pack DAF systems inject microscopic air bubbles to attach to oil, grease and fine suspended solids, lifting them to the surface for skimming. PWF compact and PWL high-capacity series suit demanding industrial duty.

How It Works

Process flow and treatment mechanism in simple steps:

1. 1

   Wastewater is conditioned with coagulant and flocculant as required.

2. 2

   A recycle stream is pressurised and saturated with dissolved air.

3. 3

   Micro-bubbles attach to pollutants and rise to the water surface.

4. 4

   Automatic skimmers collect floated sludge; clarified water exits via weirs.

Applications

Industries and situations where this product is ideal:

• Food and beverage processing
• Textile and tanneries
• Pulp and paper mills
• Slaughter houses and meat processing

Technical Highlights

Sizes, flow capacities, material options and design notes:

• 90–95% reduction of free and emulsified oil
• PWF compact / PWL high-capacity designs
• Rectangular or circular tank configurations
• Automatic sludge skimming; SS or mild steel construction

Specifications are indicative. Final design is engineered to your effluent and site conditions.

Photo Gallery

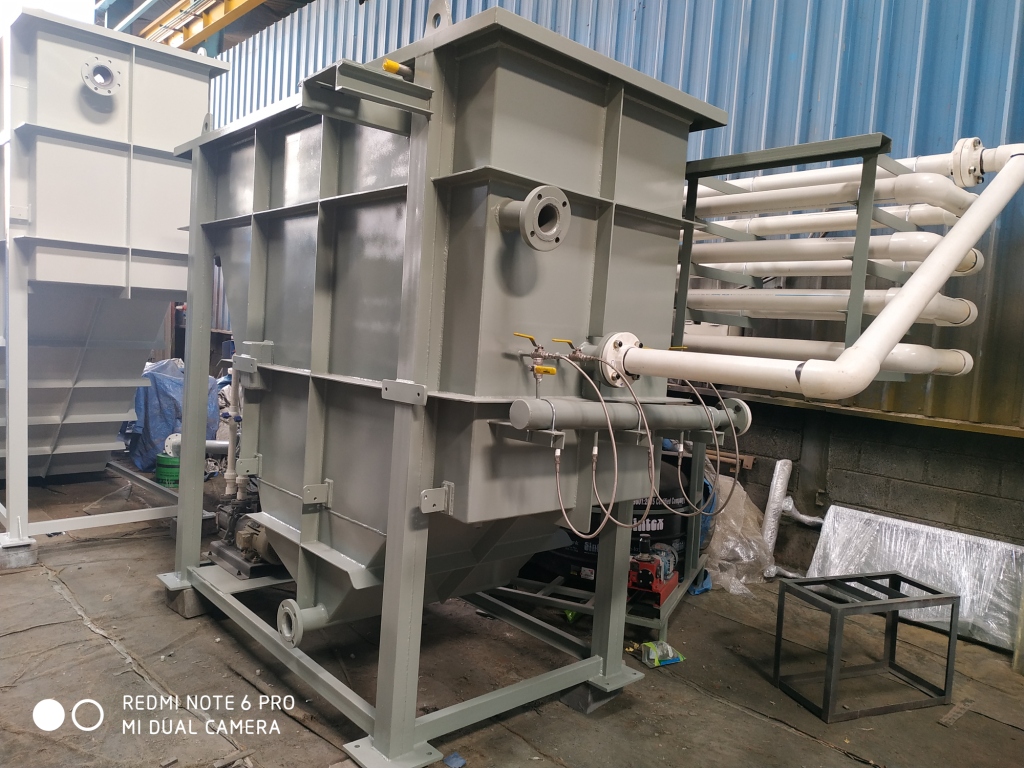

Fabrication, site installation and commissioning photography. Click any image to preview full size.

Engineered by K-Pack

Case Study

Get Quote

Share the following details with our engineers for a tailored proposal for your Dissolved Air Flotation (DAF) requirement:

• Design flow and peak factor
• Inlet FOG, TSS and temperature
• Outlet quality required
• Footprint and ceiling height
